Maritime Museum
Abstract Concept
The concept started with a manta ray. It’s elegance movement creates a volatile pattern of motion. The shape and motion drove the initial abstract concept that evolved into the building form.
Project Type:
Museum
City:
San Diego
School:
NSA+D
Year:
2013
Contribution:
Author
Design Concept

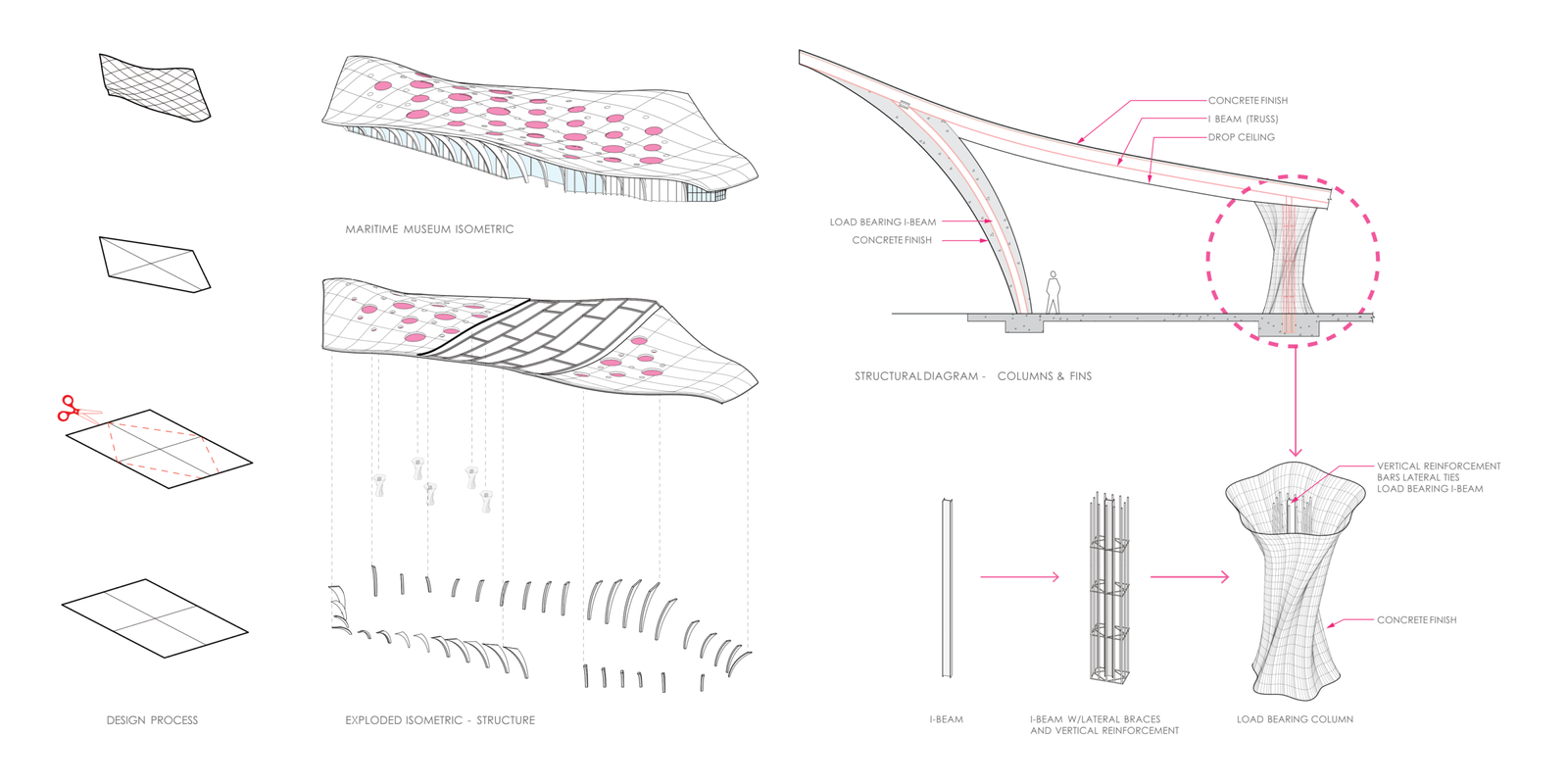

The roof of the building is the main drive of why it is a long span building. Its about 400’ x 100’ and formed by bended steal beam trusses. The roof is supported by exterior column supports and hold up the bends and interior columns that are spaced 30’ apart to allow for open space
